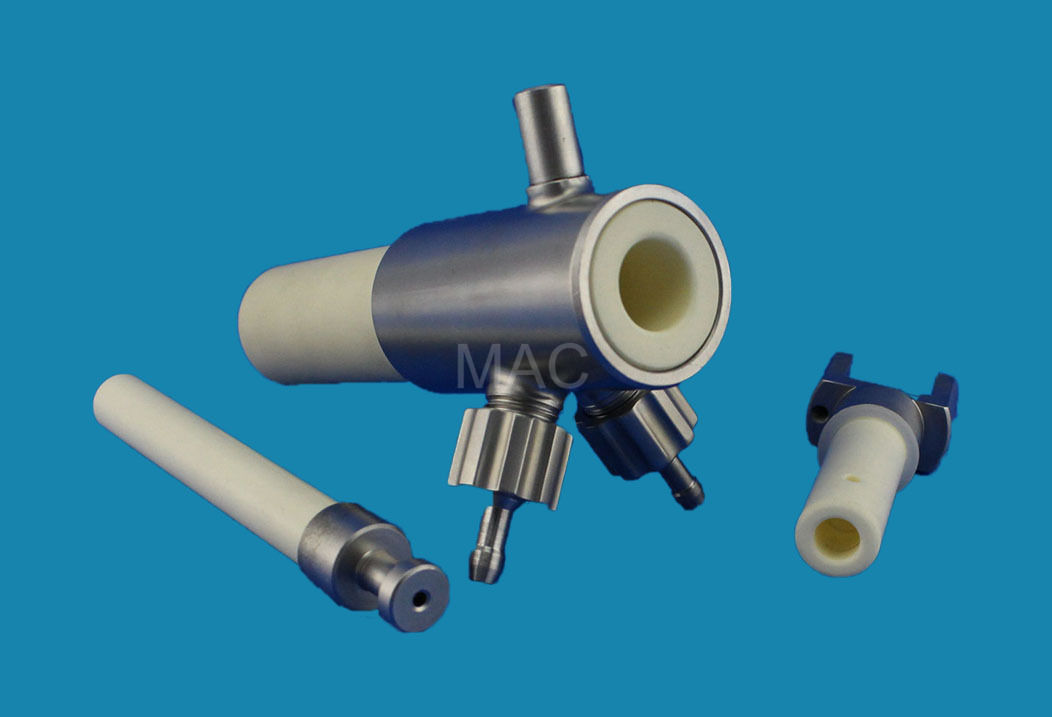

Fluid Control Ceramics valve

Fluid Control Ceramics

Fluid Control Ceramics: Why They Are the Smartest Choice for High-Precision Flow Systems in 2026

If your company struggles with leakage, premature wear, or aggressive chemical corrosion in pumps and valves, Fluid Control Ceramics are the engineered upgrade designed to transform your entire system. In 2026, high-demand industries require wetted parts that survive extreme thermal, abrasive, and corrosive environments where traditional metals and polymers fail.

Whether you operate in chemical dosing, slurry pumping, water treatment, or semiconductor chemical delivery, ceramic components provide unmatched durability, dimensional stability, and precision flow control.

Can We Manufacture Your Design?

  • ✔ Custom dimensions and tight tolerances to your drawing or CAD file

  • ✔ Prototype and production quantities quoted from the same drawing

  • ✔ Available in Alumina, Zirconia, ZTA/ATZ, Silicon Carbide, and Silicon Nitride

  • ✔ US-based engineering, application support, and quality assurance with factory-direct global manufacturing

Upload your pump or valve part drawing → (Microcopy: STEP, STP, DWG, or PDF. Include media, speed/cycle rate, and temperature range for material confirmation before pricing.)

Why Fluid Control Ceramics Deliver Superior Performance

Fluid control ceramic parts fall into five core families, each facing distinct wear mechanisms:

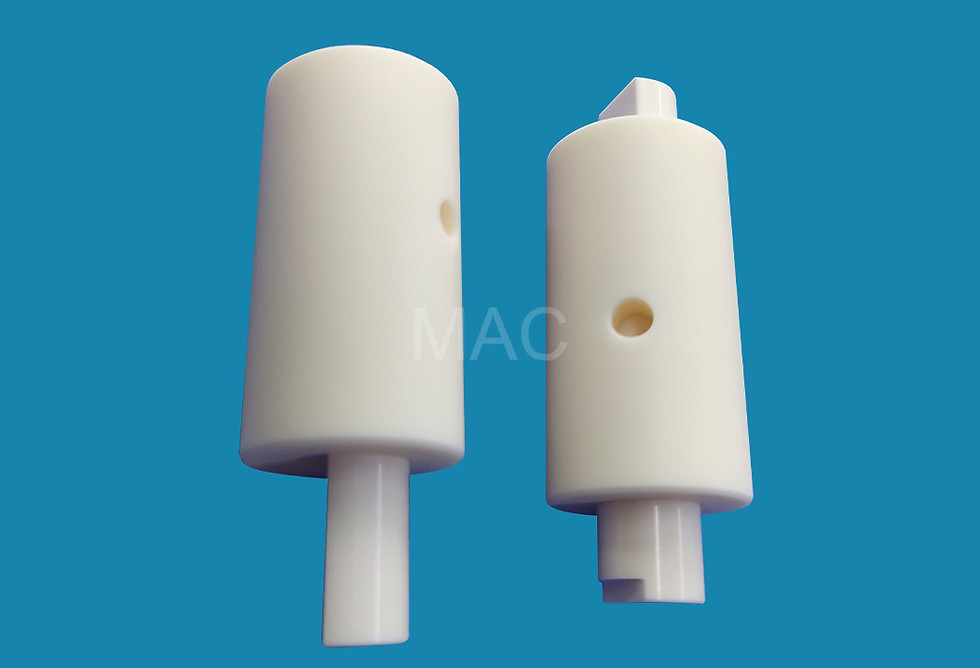

  1. Plungers: Reciprocate under pressure in plunger pumps and dosing valves (Wear: sliding wear, end-face chipping; Materials: Zirconia, Alumina).

  2. Seal Rings & Seal Faces: Form dynamic mechanical seals (Wear: frictional heat, abrasion; Materials: Silicon Carbide, Alumina).

  3. Sleeves & Bushings: Guide shafts and line bores (Wear: abrasion; Materials: Alumina, Silicon Carbide, Zirconia).

  4. Orifices & Nozzles: Meter or accelerate flow (Wear: erosion at the throat; Materials: Silicon Carbide, Alumina).

  5. Valve Seats, Balls & Discs: Seal and throttle flow (Wear: erosion, edge chipping).

Key Material Properties & Selection

Sliding parts generate frictional heat at the contact face. Thermal conductivity dictates how fast heat leaves the face, while coefficient of thermal expansion (CTE) controls dimensional fit under temperature:

Grade (Source)

Thermal Conductivity (W/m·K)

CTE (×10−6/°C)

Fracture Toughness KIC​ (MPa⋅m1/2)

Density (g/cm3)

Silicon Carbide, direct sintered (CoorsTek)

150 (20 $\degree\text{C}$)

4.4 (25–1000 $\degree\text{C}$)

3.5 (notched beam)

3.15

Silicon Carbide (Accuratus)

120

4.0

4.6

3.1

Alumina 99.5% (Accuratus)

35

8.4

4

3.89

Silicon Nitride, pressureless (Accuratus)

29

3.3

5.7

3.27

Zirconia MZ429 (CeramTec)

3.0

10.5

5

6.06–6.07

  • For Seal Faces: Read thermal conductivity first (Silicon Carbide moves heat away fastest).

  • For Plungers: Read toughness first (Zirconia resists end-face chipping).

Expert Insight

"Ceramic parts are commonly specified in chemical dosing, slurry pumping, high-pressure plunger pumps, water treatment, and semiconductor chemical delivery where abrasion, corrosion, or contamination limits metal and polymer parts. In practical terms, ceramics replace the part that wears or corrodes, not the part that takes the impact."— Mark Ma, Lead Materials Engineer, Microns Advanced Ceramics

Frequently Asked Questions (Q&A)

Q: Are ceramic plungers interchangeable with metal plungers?

A: Dimensionally they can be, but the seal, drive connection, and fit at operating temperature must be verified because ceramics tolerate compression exceptionally well while being sensitive to tension and shock loading.

Q: Which ceramic is best suited for mechanical seal faces?

A: Silicon Carbide is widely specified for its superior thermal conductivity and hardness, whereas Alumina is frequently utilized in lower-duty, cost-sensitive sealing applications.

Q: How do I request a quote?

A: Send your drawing alongside your operating media, cycle rate/speed, temperature range, and failure mode history. You can contact Mark Ma directly at mark@microns-ceramics.com or call +1 646 732 7880.

Conclusion

When abrasive, corrosive, or high-temperature media shorten the lifecycle of metal and polymer components, upgrading to precision-engineered Fluid Control Ceramics eliminates frequent maintenance cycles, prevents fluid contamination, and optimizes long-term system efficiency.

Get your fluid control part quoted against your actual service — Upload your drawing →

  • Product details

    Ceramic material optional: · 95%--99.99% Alumina(Al2O3)  · Zirconia(ZrO2)  · Silicon Carbide  · Silicon Nitride...etc



    • Sizes:Diameter:3-60mm;length:20-650mm

    • Precision:Ra 0.1um tolerance: 0.001mm... etc

    • Features:Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...
